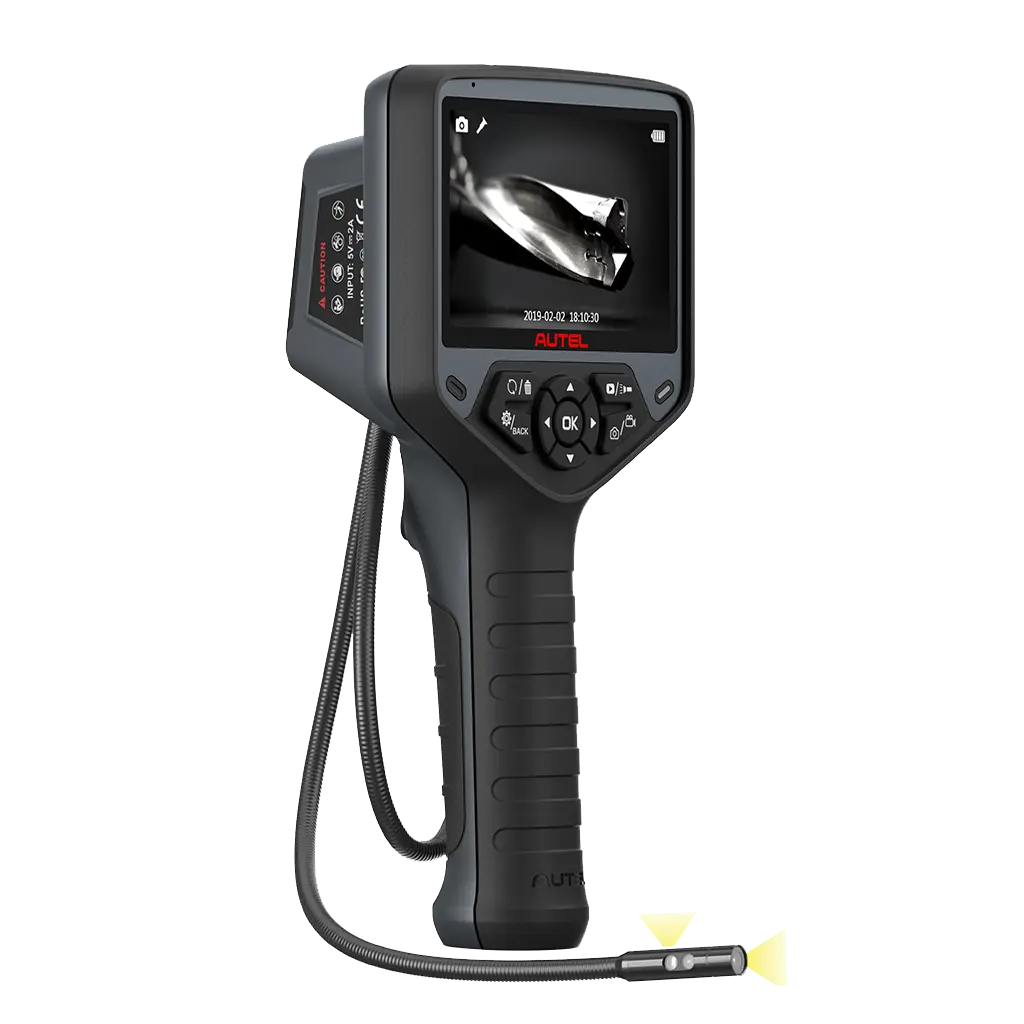

Autel MaxiVideo MV480 Digital Videoscope

The MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2,600 mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest, and most cost-effective manner possible.

Autel MaxiVideo MV480 Features

High resolution images and videos (1920 x 1080)
Dual front and side cameras for wider viewing angle
4.1-inch full color LCD display (1200 x 720)
1-button quick image capture and video recording
70-degree field of view for expanded viewing angle
Adds audio annotation for detailed review
Micro HDMI-output enables streaming to larger monitors
Freeze-frame camera stills or video recording
On-screen horizontal/vertical reverse
Records and plays back images and video clips
7X digital zoom for increased viewing
8GB Micro SD card (included), supports up to 128GB
Mini-USB cable (included) for uploading images and videos
More than 10,000 lux, adjustable 10-level LED illumination
Flashlight for higher visibility in low-light environment
Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
1m (39.4") semi-rigid, flexible watertight cable
Includes magnet and hook cable accessories
8.5mm (0.33") probe fits most spark plug holes
Compatible with 5.5mm (0.22") camera head (not included)

Specifications

Optimal viewing Distance	0.79" to 2" (2 cm to 5 cm)
Image capture	JPG images (1920 x 1080 pixels) / MP4 videos (1920 x 1080 pixels)
Screen type display	4.1" TFT LCD
Display resolution	1200 x 720 pixels
Power supply	Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested battery life	Approximately 4 hours of continuous use
Dimensions	243 x 116 x 122mm (9.6" x 4.6" x 4.8")
Weight	0.422 kg (0.93lbs)
Recording medium	Micro SD card (8GB Standard/128GB Max)
Image controls	Zoom, low light vision
Lighting	Fully adjustable LED, Flashlight
Cable reach	1m (39.4")
Imager heads	8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
Waterproof	To a depth of 1m (39.4") (Imager heads and cable only)
Additional ports	TF, Mini USB, Micro HDMI
Operating temp.	Main unit: 14°F to 122°F (-10°C to 50°C) / Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp.	Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp.	-4°F to 158°F (-20°C to 70°C)
Operating humidity	5% - 95% non-condensing

Packing List

1x MV480 main Unit
1x Magnet and Hook
1x Imager Heads and Cable (8.5 mm)
1x User Manual
1x Protective carrying case
1x Micro SD card
1x Charger
1x Mini USB Cable
